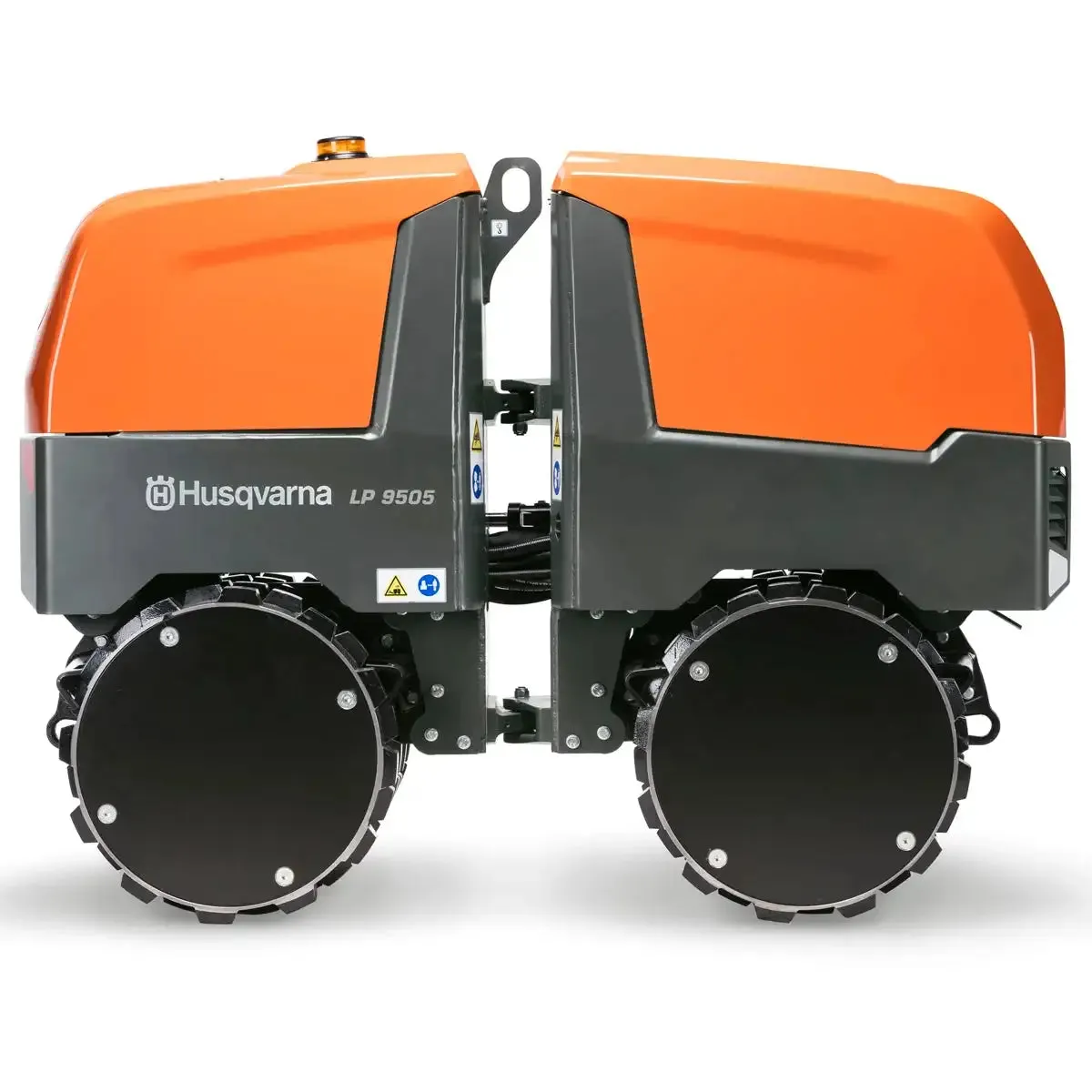

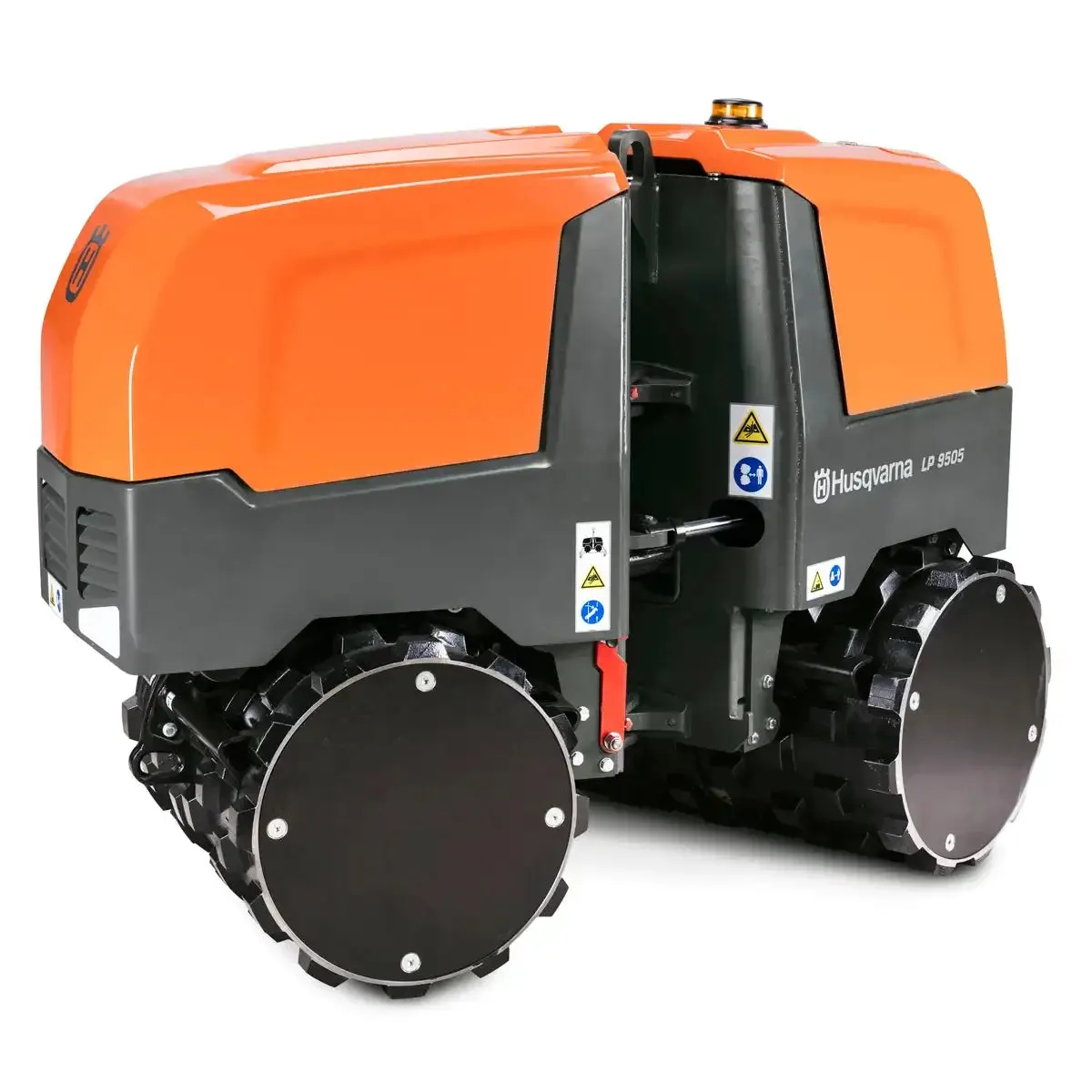

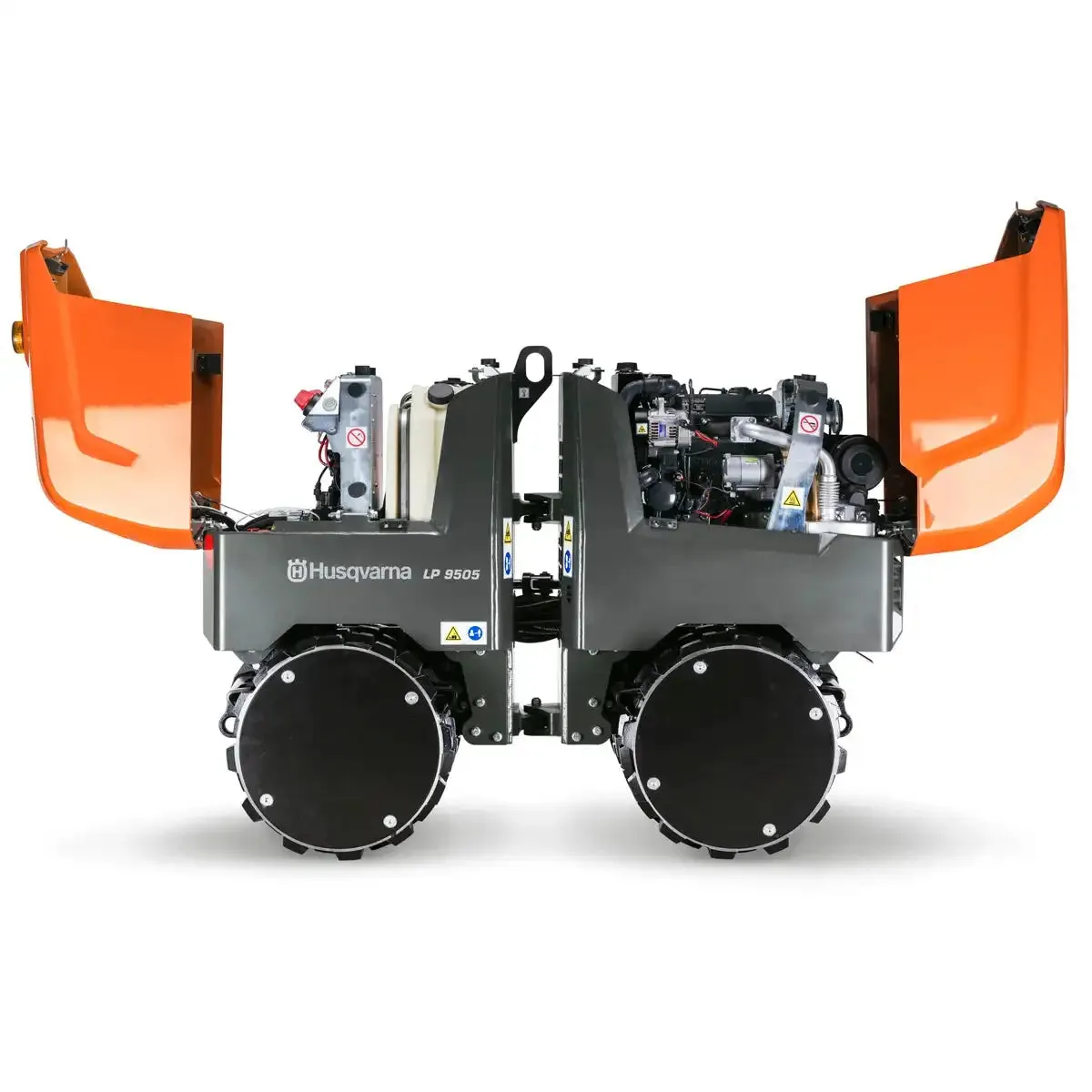

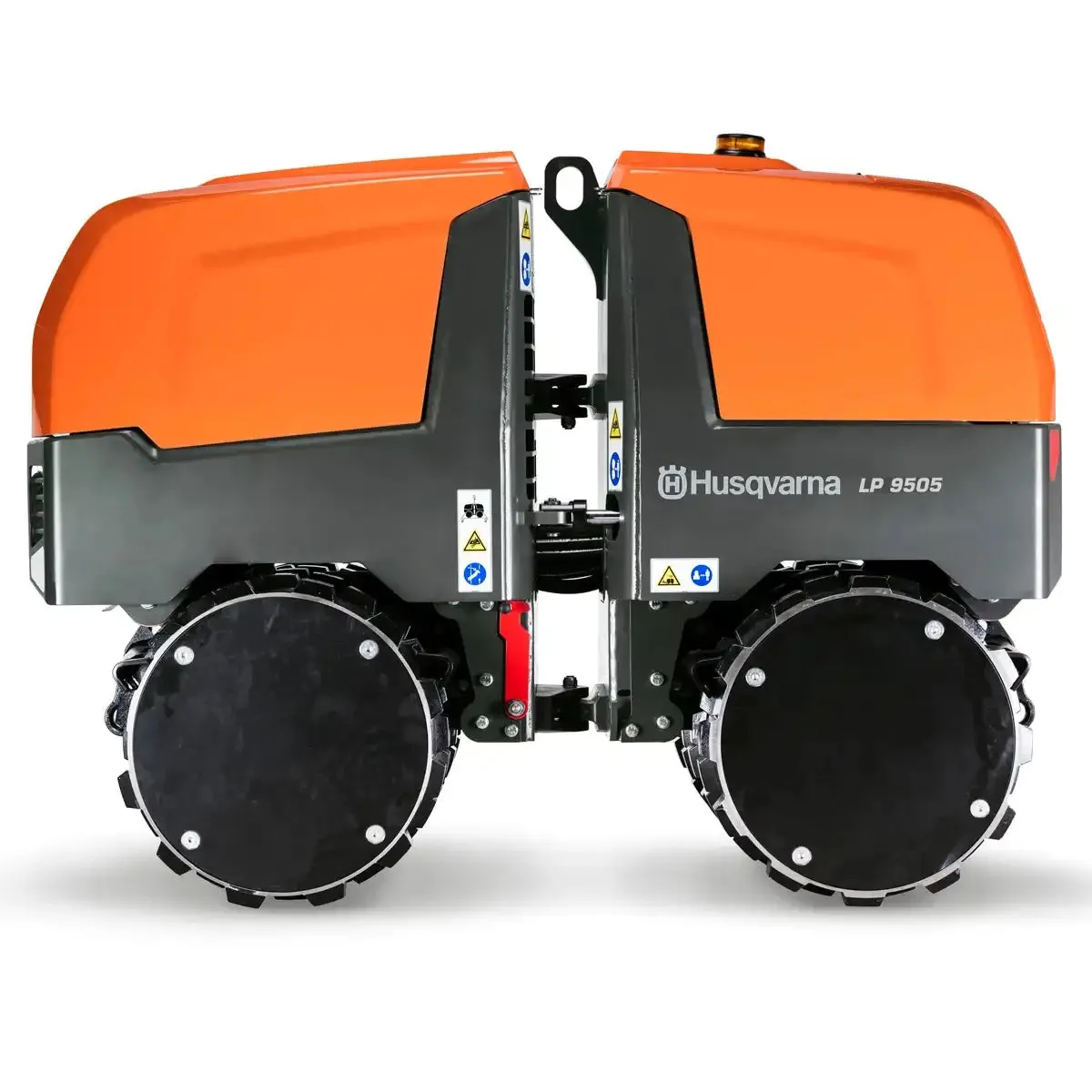

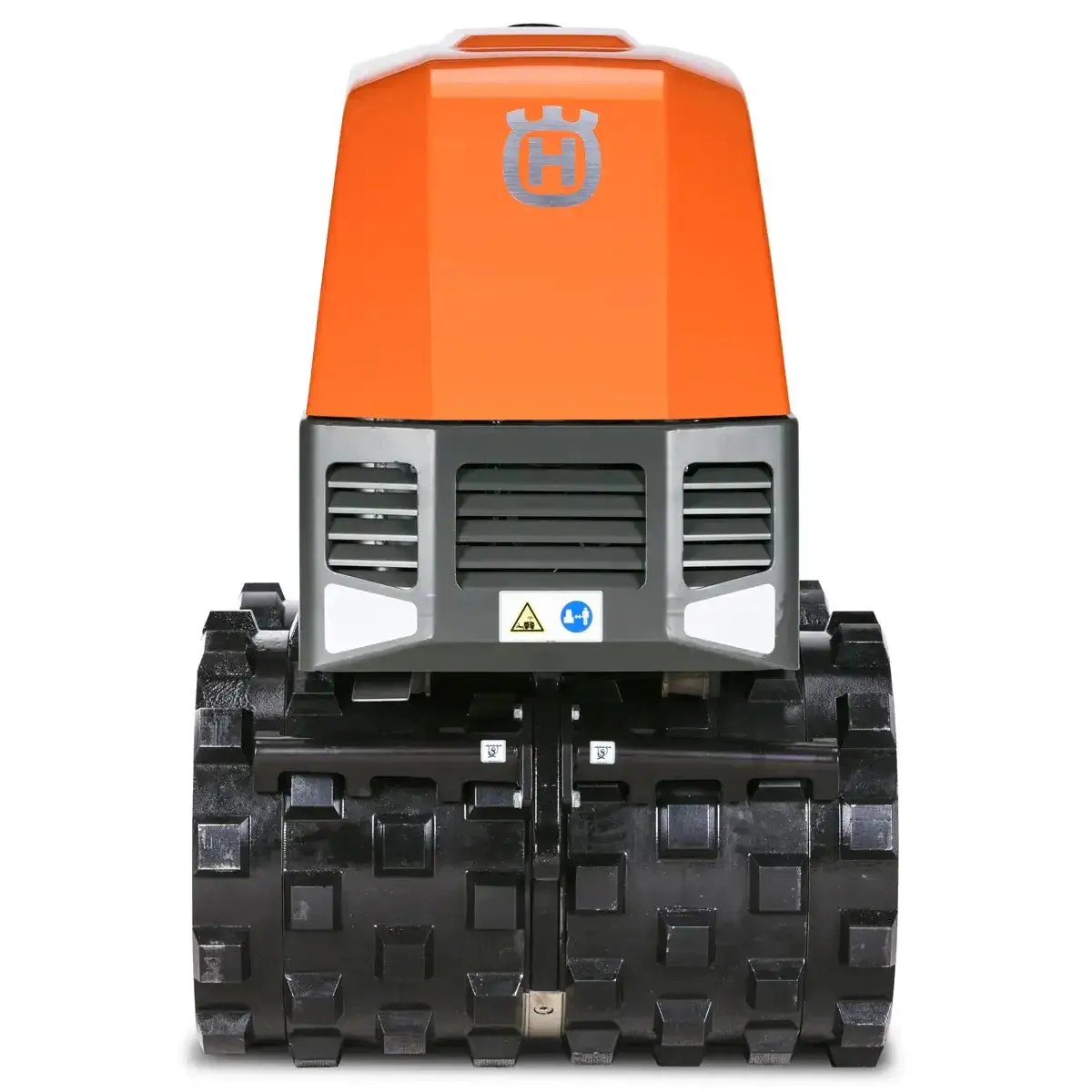

967950801 Husqvarna LP9505 Trench Compactor
The articulated trench compactor delivers a smooth compaction.
Features
- Suitable for all kinds of soils, especially for cohesive materials like clay and silt
- Highly productive in wet or dry conditions
- Excellent static compaction capability thanks to the heavy weight of the trench compactor
- High and wide drum pads increase traction on slopes and steep gradients as well as wet soils

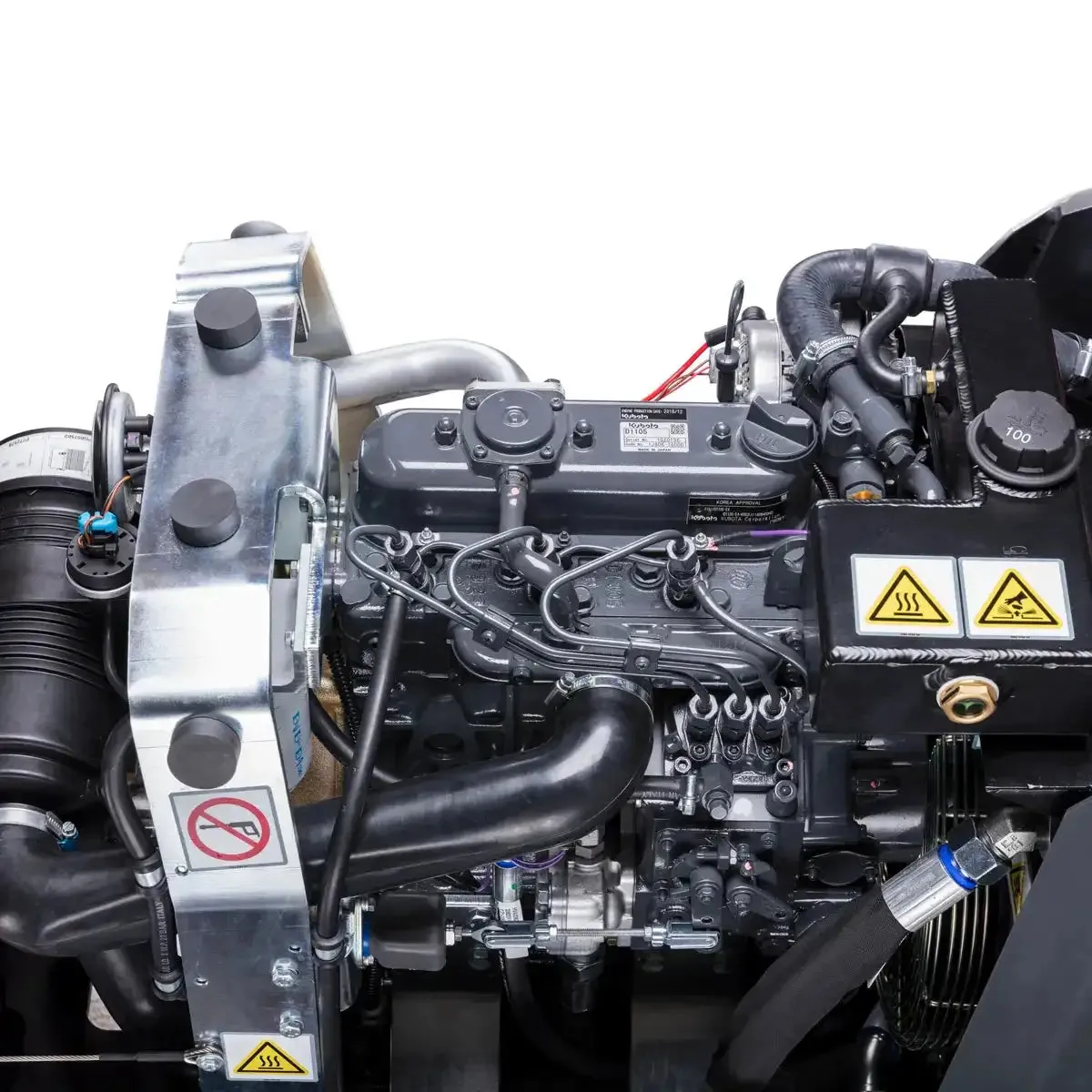

- A powerful Kubota D1105 Diesel engine with low fuel consumption combined with a large fuel tank enables a full day of work

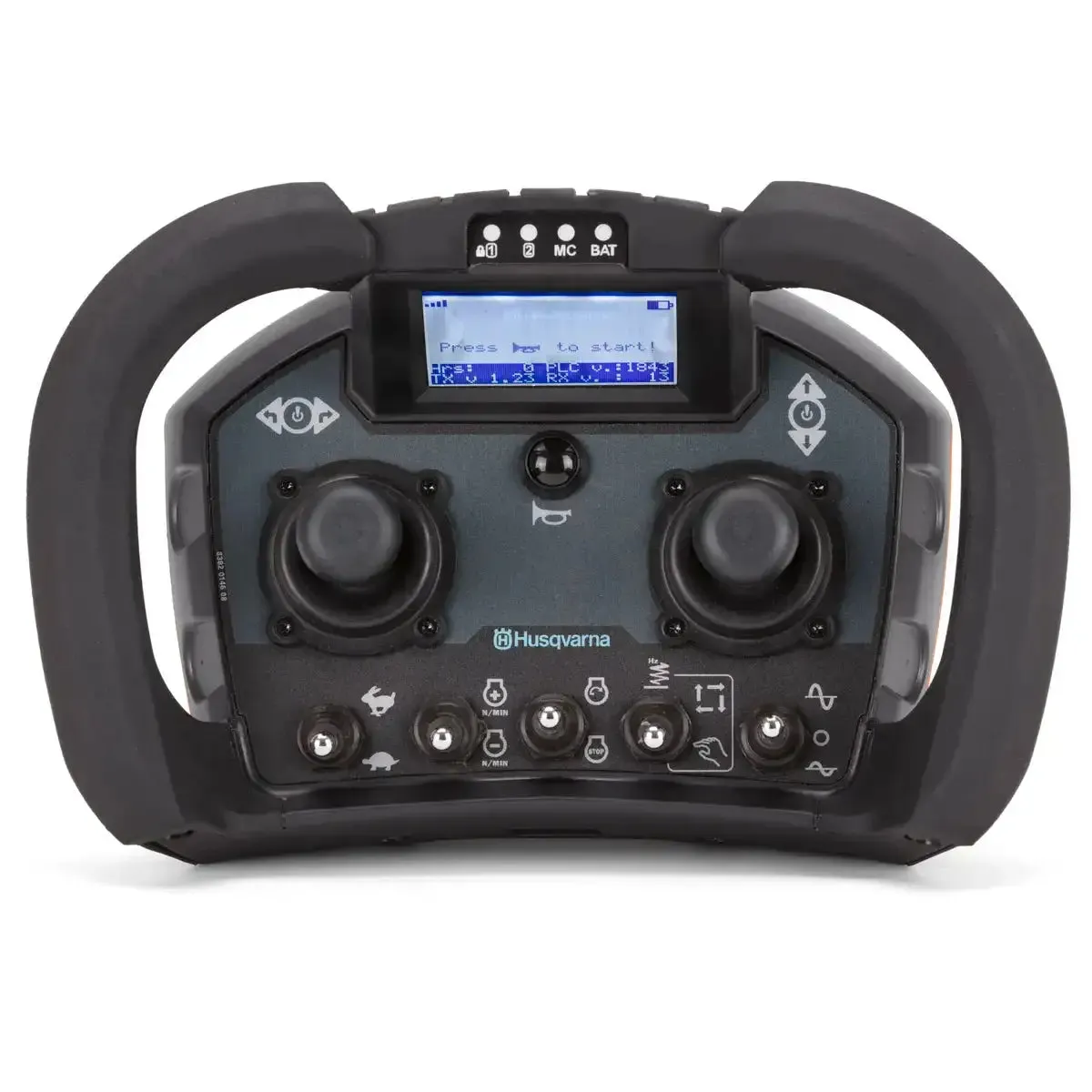

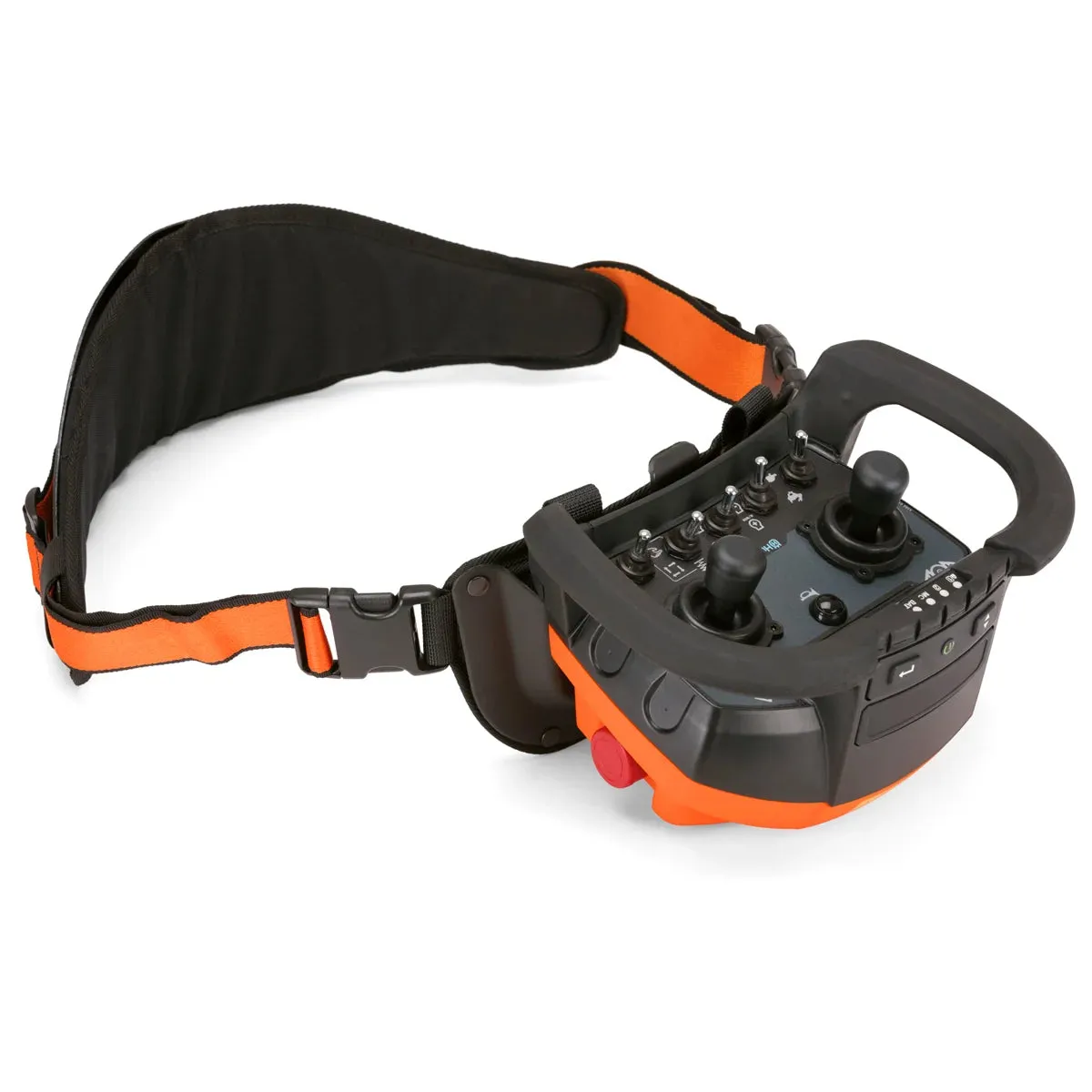

- Radio remote control system allows the operator flexibility to choose the best position of where to stand, providing for better ergonomics and safer working conditions
- 2 battery exchangeable, one in remote, one in on-board charger

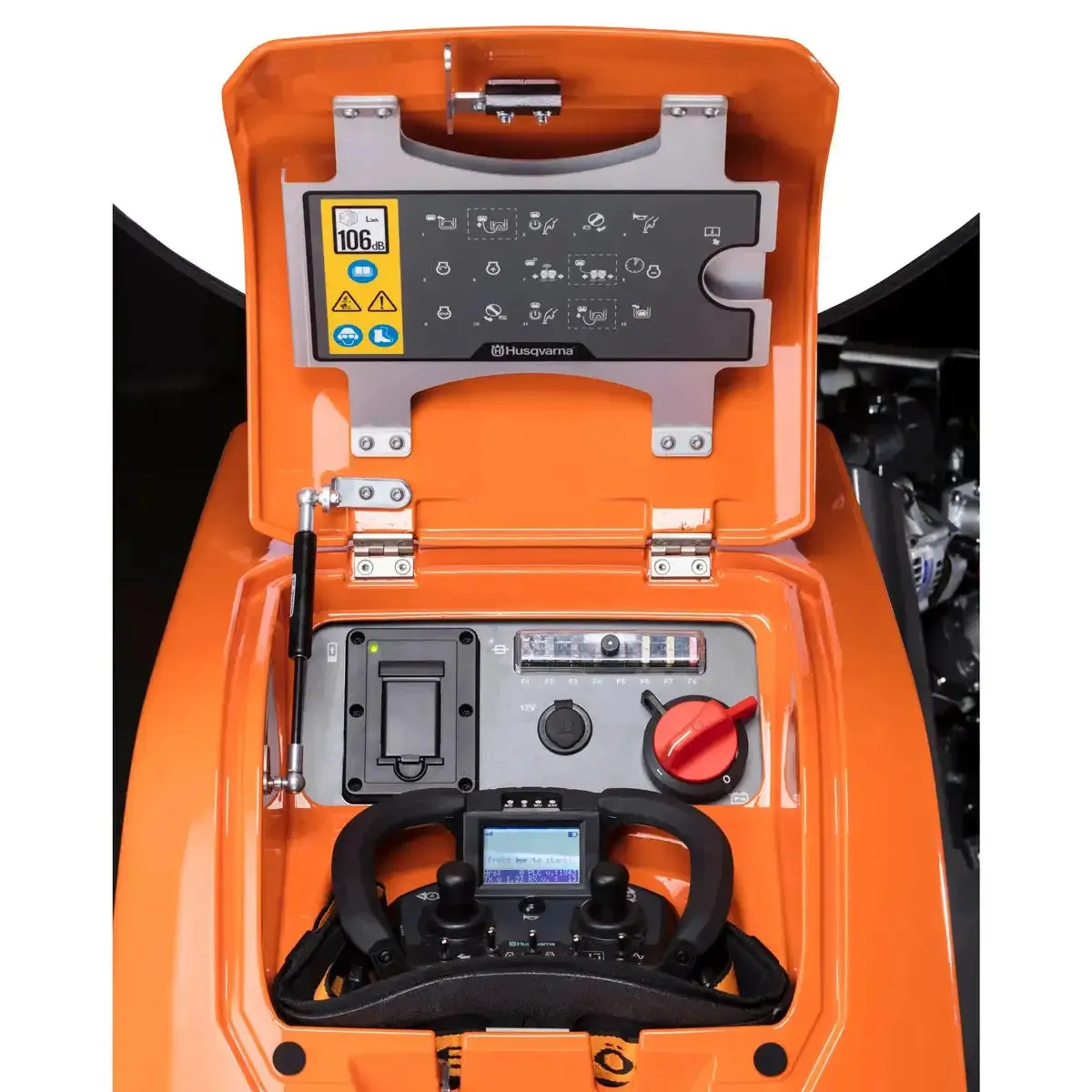

- On-board battery charger in machine
| Husqvarna LP 9505 Trench Compactor Specifications | |
| Engine | Kubota 3 Cylinder diesel |
| RPM/ min | 2,800 |
| Power Output | 24.3 hp (18.1 kw) |
| Speed | .84 mph (1.35 km/h) |
| Weight | 3,693 lbs (1,675 kg) |
| Frequency Hz | 42 |
| Centrifugal force high /low | 16.186/8.093 lbf (72/36 kN) |
| Fuel tank capacity | 7.9 gals (30 L) |
| Running time full tank | 8.6 hrs |
